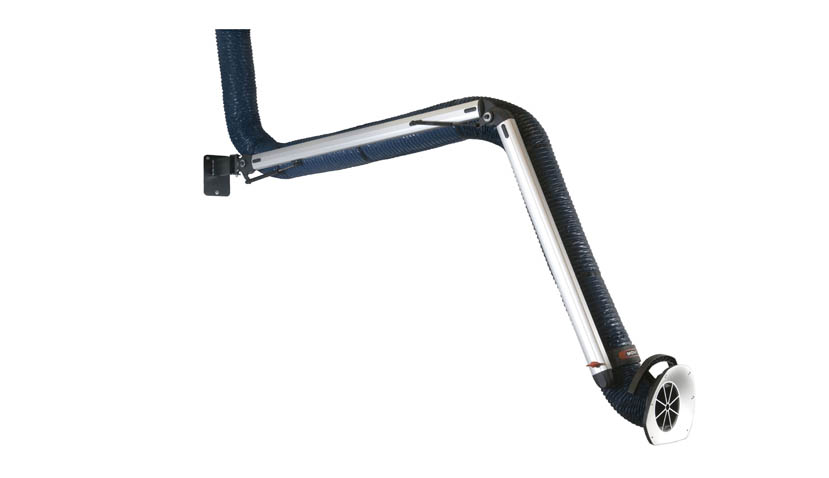

Source Capture Arms

PR

PR

Developed using new materials and new technology, designed with a focus on new and significant advantages:

  • Unique ease of manoeuvrability
  • High positional stability
  • Optimally hood design for welding smoke and other hot pollutants
  • Maximum capture efficiency and extraction

PR design is based on Movex’s basic principles:

  • External arm supports
    • Natural and direct airflow means minimal pressure drop
    • Low risk of blockage
  • Supplied partially assembled for ease of installation

Click Here for PDF | Click Here to Read More

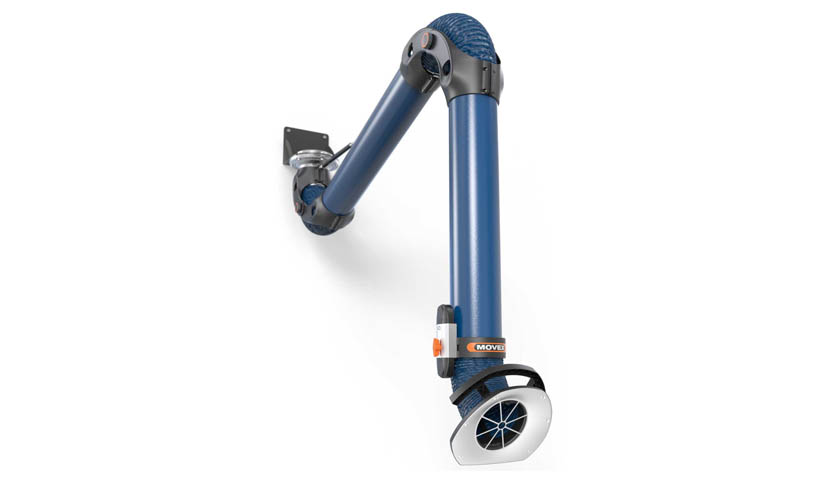

PRX

PRX

PRX – A local extractor that comes with many advantages;

  • Extremely easy to maneuver and great positional stability.
  • Unique knob for adjusting the friction joints by hand.
  • 360° swivel function.
  • Optimal hood for welding smoke and other hot pollutants.
  • Maximum capture efficiency and extraction.
  • Maximum reach.

Movex basic principle of local exhaust ventilation is construction with external support arms, which provides for:

  • Low pressure drop
  • Low risk of clogging

The local extractor is supplied partially assembled for ease of installation.

Click Here for PDF | Click Here to Read More

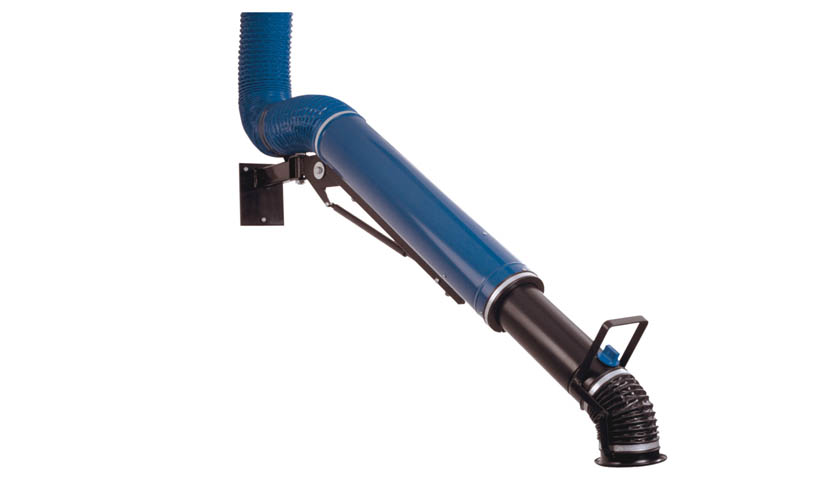

TEX

TEX
Telescopic local extractor for confined workplaces

  • A compact extractor for welding booths and workbenches
  • Gas spring balances the weight of the arm
  • Flexible suction nozzle rotates through 360˚ and can be positioned at a 90˚ angle

TEX is designed based on Movex’s basic principles:

  • External arm supports
    • Natural and direct airflow means minimal pressure drop
    • Low risk of blockage
  • Supplied pre-assembled for ease of installation

Click Here for PDF | Click Here to Read More

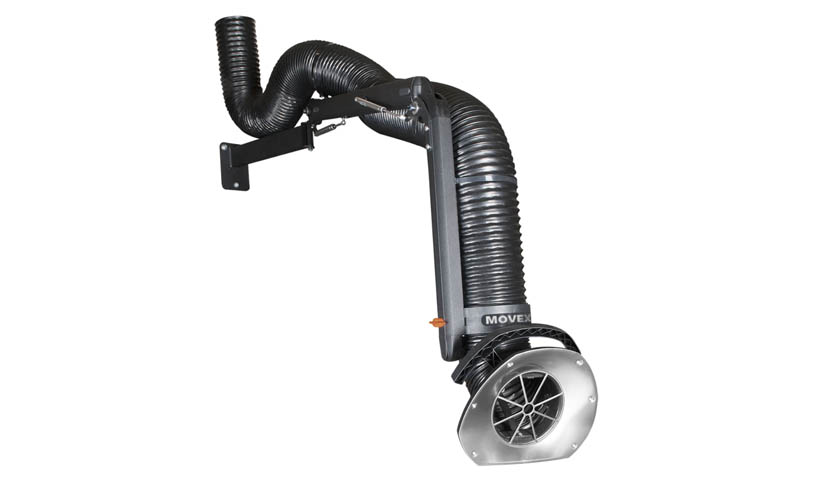

PR EXC/EXD

PR EXC/EXD

The PR EXC/EXD has the same unique features and design as PR.

The differences lays in the grounded structure and that PR EXC/EXD meet the requirements of the ATEX Directive 94/9/EC Category 2 for gases and dust:

  • Zones 1 and 21
  • EX II 2 GD marking

The PR EX is available in two versions:

  • EXC with black chemical resistant PE hose.
  • EXD with semi-transparent white PU hose for dust-related pollutants.

Click Here for PDF | Click Here to Read More

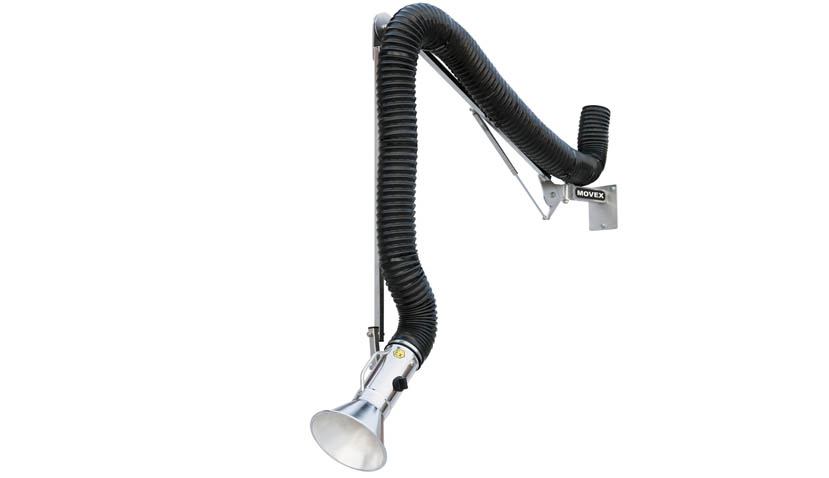

R/RZ EXHC

R/RZ EXHC

Used in corrosive environments and manufactured entirely from stainless steel components:

  • Grounded structure
  • Full fills requirements for ATEX directive 94/9/EC category 2 for gases and dust
    • Zones 1 and 21
    • EX II 2 GD marking

The local extractor is designed based on Movex’s basic principles:

  • External arm supports
    • Natural and direct airflow means minimal pressure drop
    • Low risk of blockage
  • Supplied assembled and tested

Click Here for PDF | Click Here to Read More

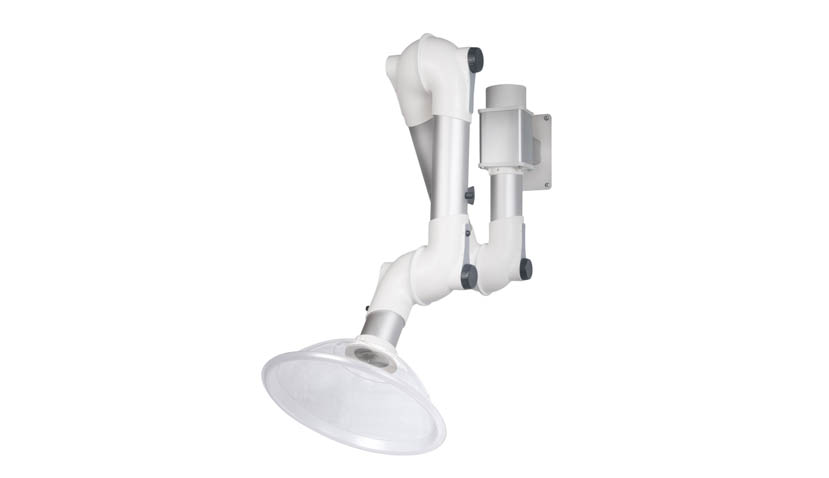

ME

ME

The ideal extractor for laboratory environments

The unique joint design of the Movex ME results in a very low pressure drop, which produces many valuable benefits:

  • Energy-saving
  • Lower noise levels
  • Less risk of disruptive ventilation noise
  • Low pressure drop without having to use a larger dimension system
  • Easy to combine with other extractors in the same ventilation system

Click Here for PDF | Click Here to Read More

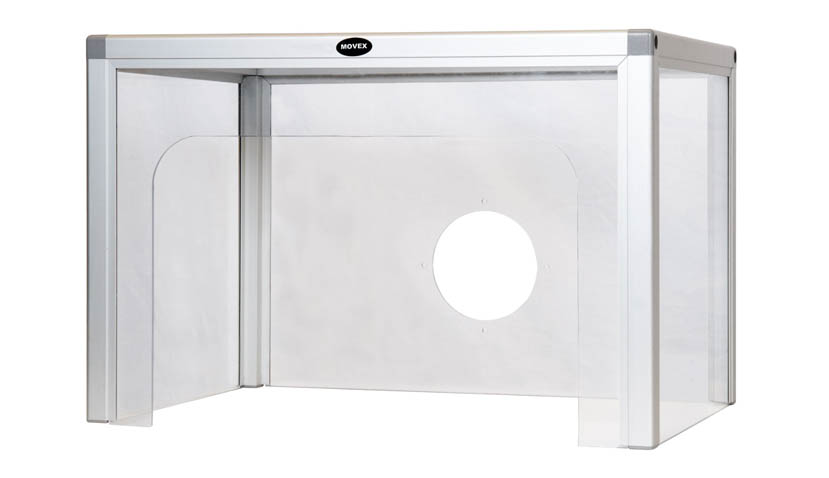

DSK

DSK

DSK is a fume cabinet adapted for working with multiple sources of pollution simultaneously, such as:

  • Encasing an apparatus
  • Working with open chemical containers
  • Gluing

The design allows a clear view of the work area, and the cabinet can easily be moved when tasks or locations change.

DSK comes in two standard sizes (DSK 400/DSK 700), and can also be adapted to specific needs.

Click Here for PDF | Click Here to Read More

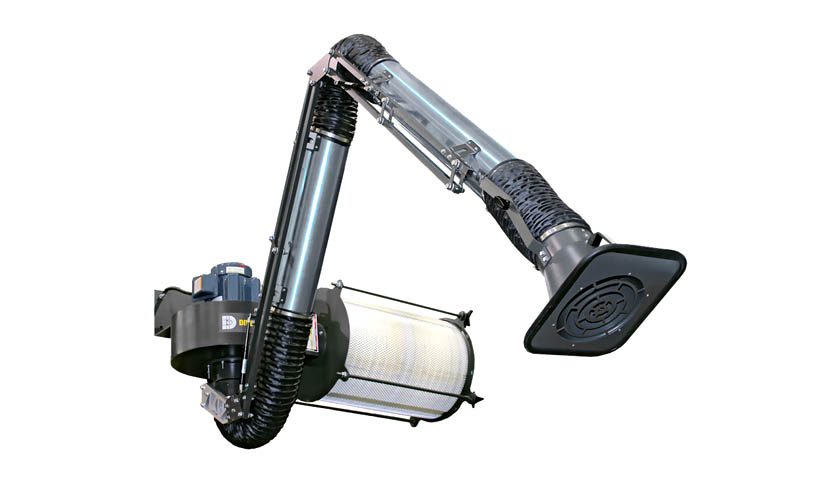

FRED ECO Series

FRED ECO Series

DiversiTech’s FRED-ECO offers a simple, affordable, and easy-to-install fume extraction and filtration kit for everyday applications.  The 10’ flexible capture arm on the Fred ECO is externally articulated, making operator repositioning and maintenance easy. The kit includes a 120V rotary motor starter that can be conveniently mounted close to the operator’s working area. Once properly positioned, smoke, dust, and other airborne contaminants are safely captured before reaching the operator’s respiratory zone. When the extraction arm needs to be mounted further away from the blower, the remote mounting kit is a popular option.

Click Here for PDF

OR

CALL 1-877-410-1887
