Downdraft Tables (Wet & Dry)

Wet

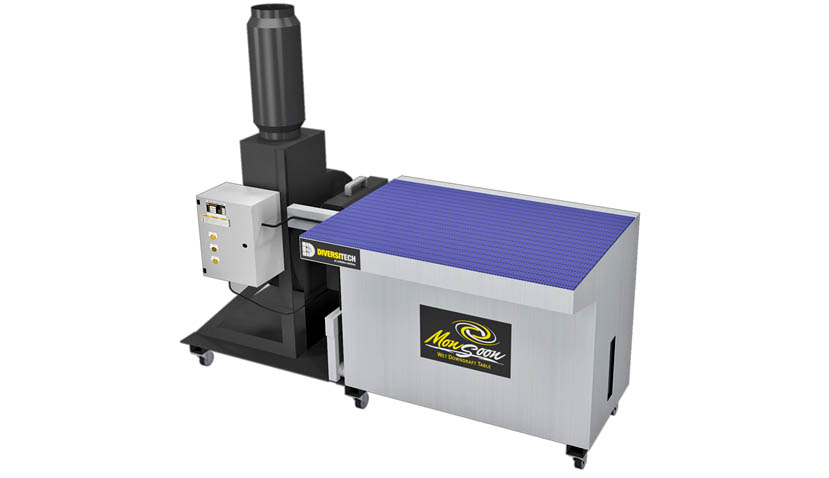

3’ X 4’ Monsoon Wet Downdraft Table

3’ X 4’ Monsoon Wet Downdraft Table

DiversiTech’s MONSOON™ Wet Downdraft Table provides a safe and secure solution for the capture and collection of hazardous combustible dust. The simple to use, plug and play design allows for a quick and easy installation. The integrated blower in the wet downdraft table provides an industry-leading capture velocity to remove dust further away from the table surface than competitive models.

The MDD 3′ x 4′ includes a protective rubber grid mat to prevent delicate parts from getting damaged or scratched.  An optional auto-wash down system sprays the top surfaces of the table to dislodge dust and move it into the water tank, reducing maintenance intervals.

Click Here to Learn More

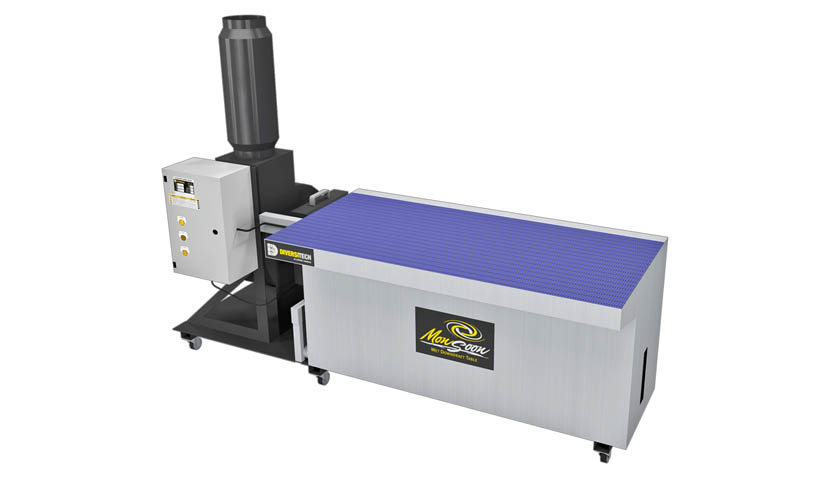

3’ X 6’ Monsoon Wet Downdraft Table

3’ X 6’ Monsoon Wet Downdraft Table

The MONSOON™ Wet Downdraft Table product series delivers the safe capture of hazardous/combustible dusts with the smallest equipment footprint in the industry. This self-contained, wet downdraft table’s patent-pending design achieves a very high face-velocity at an affordable price. A wide range of application kits and custom fittings can help you meet your NFPA and OSHA requirements.

The MONSOON™ 3′ x 6′  includes an Auto-Water Level Control System that automatically fills to keep the correct water level in the basin.  This wet filtration table is perfect for capturing combustible dust, including mixtures of steel, aluminum, titanium, and magnesium.

Click Here to Learn More

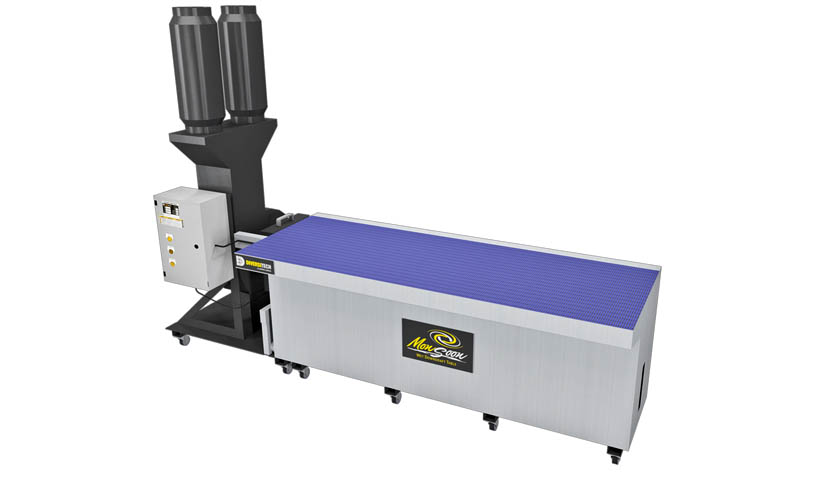

3’ X 8’ Monsoon Wet Downdraft Table

3’ X 8’ Monsoon Wet Downdraft Table

The MONSOON™ Wet Downdraft Table provides an all-in-one solution for the capture of combustible metal dusts including aluminum, titanium and magnesium. The  table’s stainless steel construction prevents the machine from experiencing rust and corrosion, making maintenance and cleanout quick and easy.

The MDD 3′ x 8′ includes a 12” integrated extended overhang, allowing operators to sit ergonomically and comfortably at the table surface. A mist eliminator after-filter prevents the unit from exhausting humidity and water into the surrounding area.

Click Here to Learn More

Dry

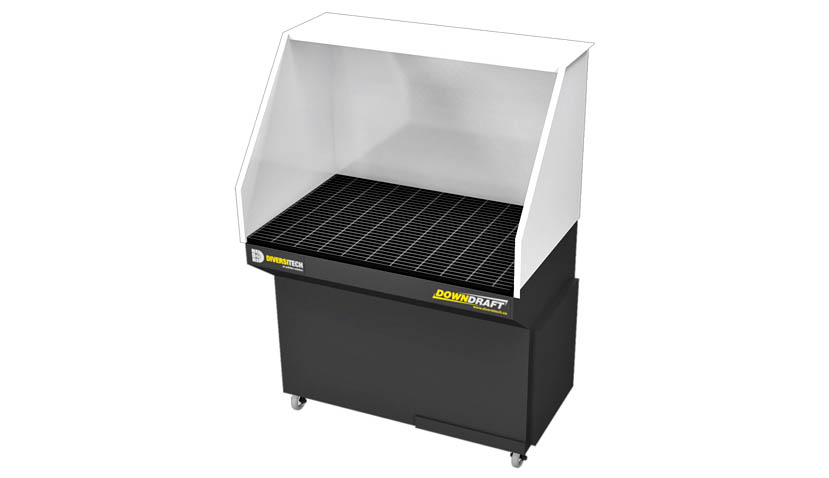

2’ X 4’ Downdraft Table

2’ X 4’ Downdraft Table

This mobile, self-contained downdraft table from DiversiTech features a manually activated reverse-pulse, self-cleaning system, allowing for hassle-free filter cleaning and maintenance. The DD 2x4 makes it easy to collect all dust, smoke, and fume from many types of applications, offering hands free capture at source above the perforated table top.  A wide range of application-specific kits and custom fittings can help you meet your clean air and OSHA requirements.

The 2’ X 4’ Downdraft Table features a large capacity Nanofiber filter with an arrestance rating of 99.8% @ 0.5 micron along with an optional 2″ deep metal mesh pre-filter. The metal mesh pre-filter is washable while the main filter must be replaced periodically. The 2x4 downdraft table is a versatile machine, featuring a 120V plug & play motor developing 1500 CFM, allowing operators to handle tough industrial applications with a compact and cost-effective filtration package.

Click Here to Learn More

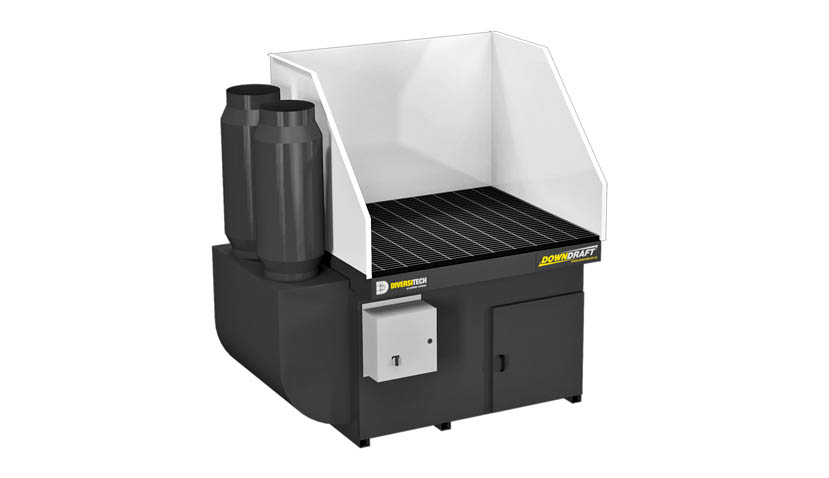

3’ X 4’ Downdraft Table

3’ X 4’ Downdraft Table

The DD 3x4 downdraft table from DiversiTech provides a powerful single-operator ventilated workstation, allowing operators to collect all dust, smoke, and fume above the table surface.  A wide range of options and custom engineered components are available to equip the DD 3x4 downdraft table for any application.

The 3’ X 4’ Downdraft Table comes standard with nanofibers filters with an efficiency of 99.8% @ 0.5 micron along with optional metal mesh spark arrestance pre-filters. The metal mesh pre-filters are cleanable in water while the main filters can be cleaned with compressed air and are reusable.

Click Here to Learn More

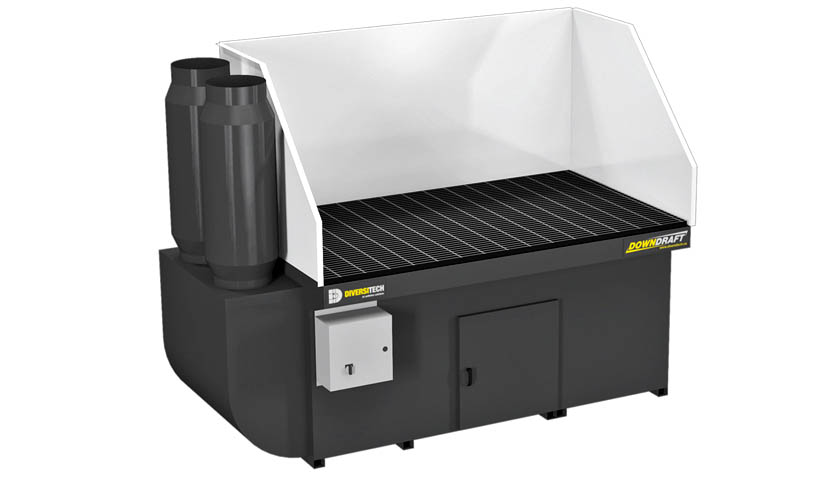

3’ X 6’ Downdraft Table

3’ X 6’ Downdraft Table

This self-contained DD 3x6 downdraft table from DiversiTech features an automatically activated reverse-pulse self-cleaning system, making it easy to collect all dust, smoke, and fume from applications above the perforated table top.  A wide range of application kits and custom fittings can help you meet your clean air and OSHA requirements.

The 3’ X 6’ Downdraft Table features large capacity paper-pleated filters with an arrestance rating of 99.8% @ 0.5 micron along with optional 2″ deep metal mesh pre-filters. The metal mesh pre-filters are washable while the main filters must be replaced periodically.

Click Here to Learn More

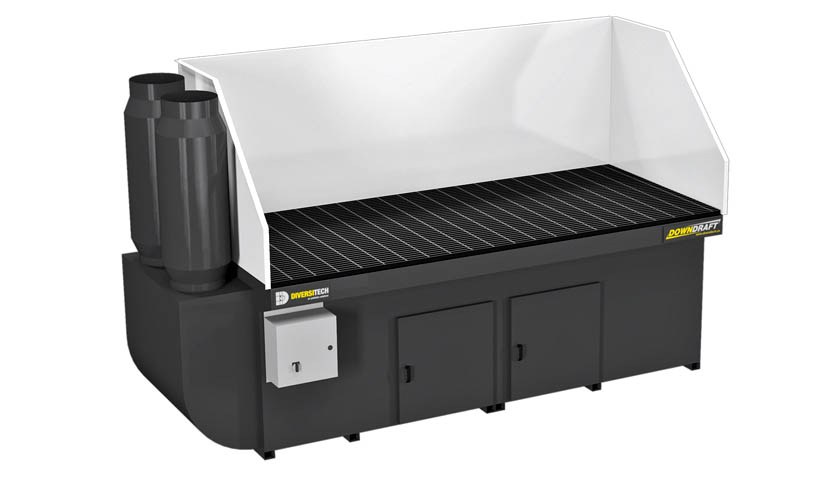

3’ X 8’ Downdraft Table

3’ X 8’ Downdraft Table

The DD 3x8 industrial downdraft table from DiversiTech features a five stage spark arrestance baffle system preventing sparks and slag from reaching the main filter cartridges.  An integrated automatic reverse-pulse filter cleaning system reduces maintenance requirements by blowing particles into a dust tray for removal.

The 3’ X 8’ Downdraft Table comes standard with 4 nanofiber filters capable of handling 99.8% of contaminants @ 0.5 micron along with exhaust duct mufflers to reduce noise. Downdraft tables can be mirrored together to create large work surfaces when dealing with large work pieces.

Click Here to Learn More
