Magnetic Coolant Filtration

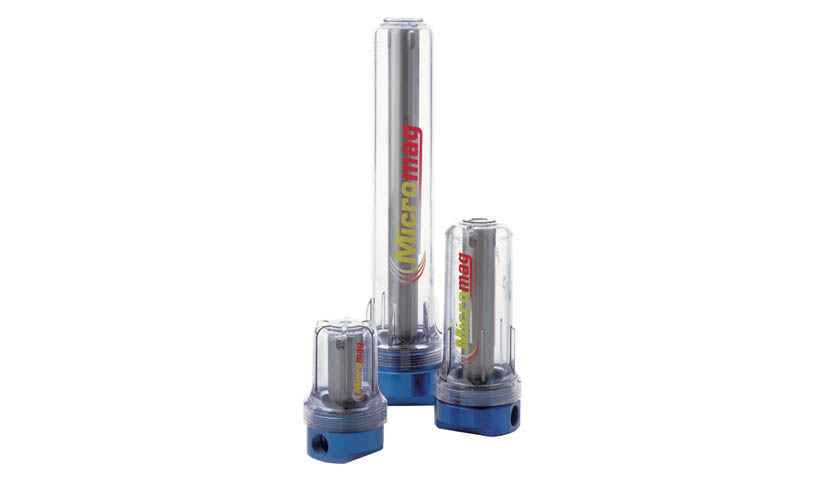

The patented, compact Micromag magnetic filter can benefit many different industries.
Contaminated fluid enters the inlet port where it is dispersed by the unique tapered radial ow channels. Fluid passes down the outside of the centrally mounted rare earth magnetic core which captures contamination particles along its length, resulting in excellent filtration efficiency.
The geometry of the magnetic flux circuit means that contamination builds up in a controlled way, ensuring that the filter can never block, irrespective of how much contamination is held. Channels remain open allowing fluid to continue to flow freely.
The filtered fluid flows through the return slots located in the upper section of the magnetic core, down through the centre and exits through the outlet port.

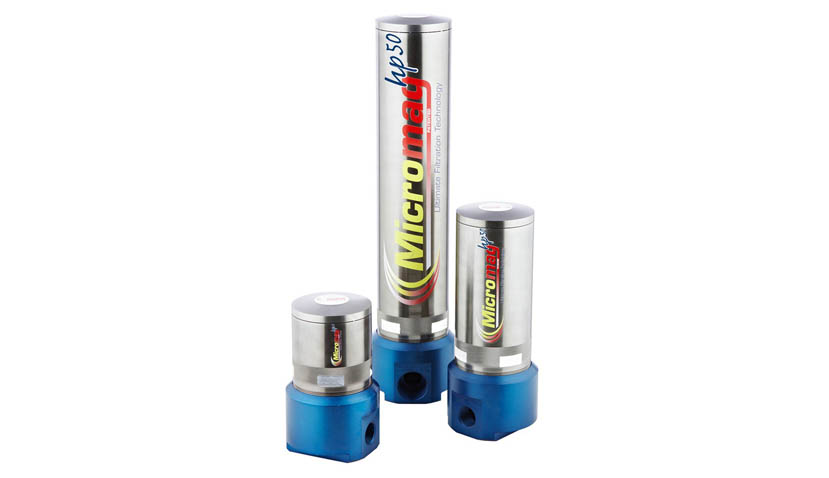

The Micromag HP/50 has all the same benefits of the standard Micromag but has been developed to suit high pressure through spindle-coolant applications, where the smallest of particles can damage seals, spindles and even reduce the efficiency of the cutting tool.
Micromag HP/50 can be installed anywhere in the fluid delivery system and will ensure that even sub-micron magnetic and para-magnetic particles are removed before they can cause any expensive damage.
For further information relating to the benefits and operation of the Micromag HP/50 please refer to the supplied standard Micromag brochure.

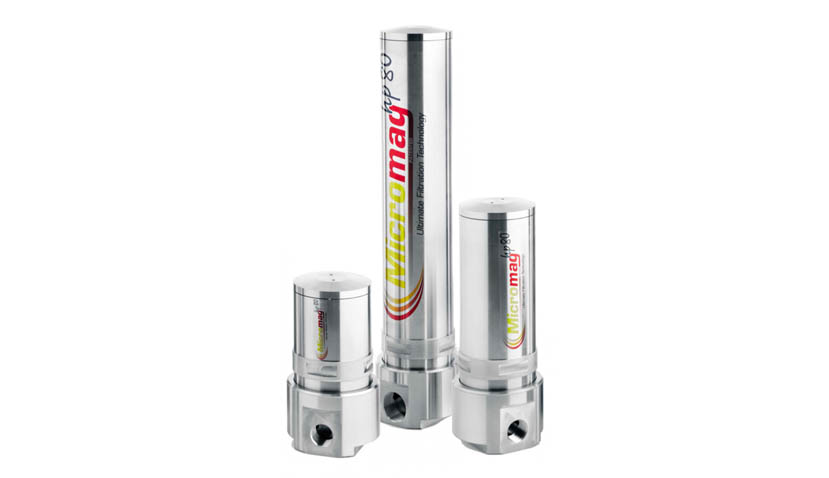

The Micromag HP/80 follows on from the standard Micromag and has all of the same incredible bene ts. This unit was developed to suit high pressure through spindle coolant applications, where the smallest of particles can damage seals, spindles and even the ef ciency of the cutting tool.
Micromag HP/80 can be installed anywhere in the fluid delivery system and will ensure that even sub micron magnetic and paramagnetic particles are removed before they can cause any expensive damage.
For further information relating to the benefits and operation please refer to the supplied standard Micromag brochure.

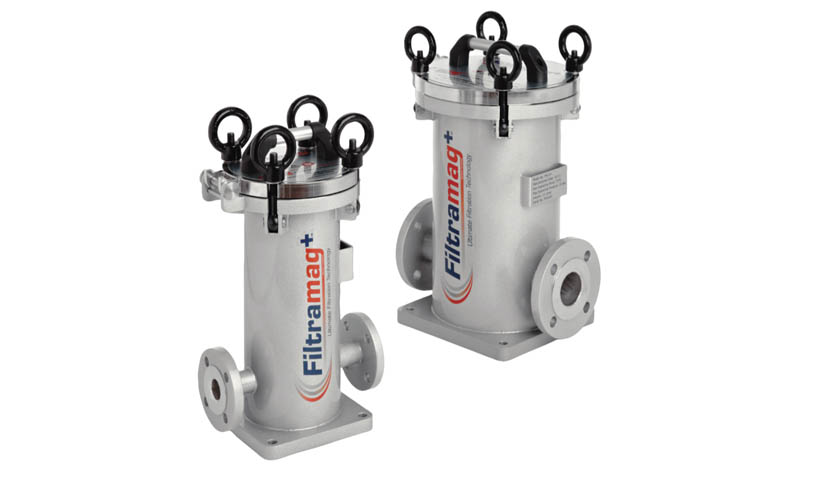

Filtramag+ is a high performance magnetic filter with full stainless steel construction which makes it suitable for use in a variety of industry sectors and applications.
- Patented design
- Easy installation
- Unique dual flow technology TM – maximizes collection capability
- Operates at up to 290psi bar
- Removes both magnetic and non-magnetic contamination
- Minimal pressure drop
- In-line connections
- Ideal for use in harsh chemical environments Dual flow techologyTM Filtramag+ is the most efficient filter of its type. The dual chambered design means that fluid is exposed to the high intensity magnets for the maximum time thus ensuring almost 100% of contamination is removed on first pass through the filter. The patented magnetic circuit on the 4,000 gauss version design ensures that the filter can never block even in high contamination applications.
